Air to Air Plate Heat Exchanger

Air to Air Plate Heat Exchanger

Heat exchangers for heat transfer between air and air through heat-conducting plates. The energy of the hot air is used to pretreat the cold air at the same time reduce the temperature of the hot air, so as to achieve the purpose of energy recovery. The hot air and the cold air are completely separated by the heat-ing plate, avoiding cross-contamination and ensuring the cleanliness of the air.

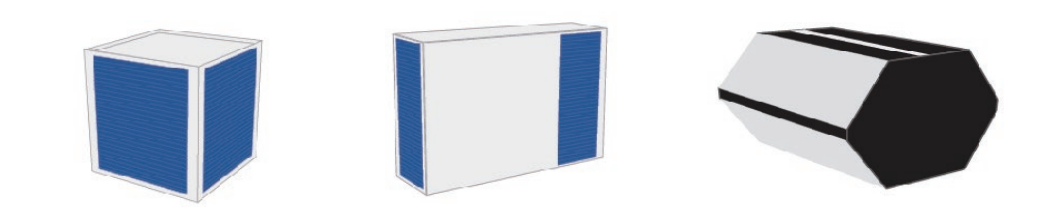

Multiple materials: aluminum foil core, hydrophilic aluminum foil core, epoxy aluminum foil core, stainless steel core, titanium steel core, ABS frame full hot. Core airflow forms are diverse: fork reverse flow core, cross flow core, reverse flow core. Multiple shapes: square, rectangle, diamond...





Classified by thermal conductive plate material

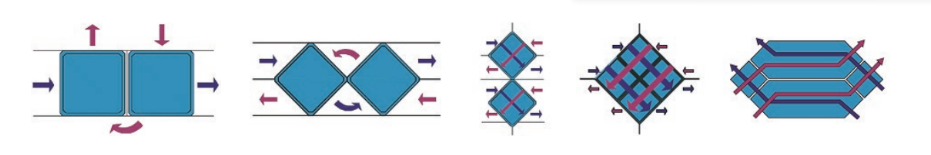

Classified by air flow passage

Product Features

•Green

All materials comply with RoHS/Reach environmental protection requirements, and the products are more conducive to human health and environmental protection.



•High-end configuration

The use of high-quality heat exchange materials and plates in line with national standards, strong corrosion resistance, good formability.



•Professional Design

Proprietary selection software design, to meet the customer's selection of various conditions, to provide the optimal configuration scheme output selection report, improve design efficiency.



•Reliable operation

Modular structure, no moving parts, easy to use, less equipment maintenance costs.



•High tightness

The edge of the air inlet adopts special process bite technology, and the air leakage rate is as low as 5%. According to the requirements of different occasions, the anti-water leakage process is adopted. 100 before leaving the factory, it is waterproof tested to ensure that there is no leakage.



•High pressure resistance

The air channel is supported by a special stamping convex body to ensure the high strength of the channel, and the welding process is used according to the requirements to achieve super pressure.



•Energy Efficient

The molded plate with enhanced heat transfer has high heat exchange efficiency and has passed the inspection of "National Air Conditioning Quality Supervision and Inspection Center.



•Wide operating range

Compact structure, small size, the use of a variety of heat exchange materials, can meet a wider range of applications and occasions, a variety of high temperature environment stable use.



•Tailored

Product diversity, flexible specifications, according to different industry customers to provide the best solution, suitable is right.



•Self-developed technology

The frame connection adopts slot insertion and matching, no screws and other fasteners are required and reliable connection is ensured. The installation process is very fast, convenient and labor-saving. The product has no protruding parts and beautiful appearance.

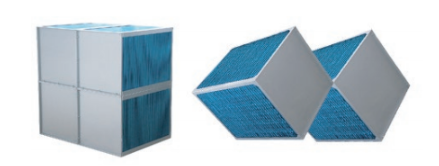

01 Increases the heat exchange area and is suitable for occasions with high energy recovery efficiency.

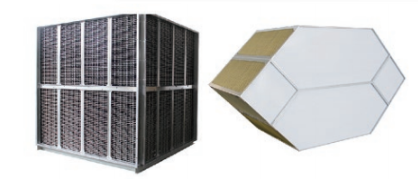

02 Increases the windward area and heat exchange area, which is suitable for large air volume and high energy recovery efficiency requirements.

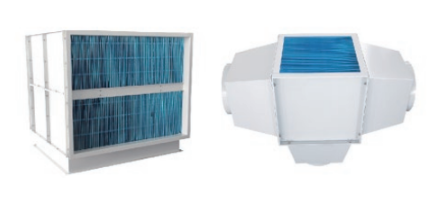

03 Increases the windward area, suitable for large air volume energy recovery occasions, to ensure that the energy recovery efficiency and wind resistance unchanged.

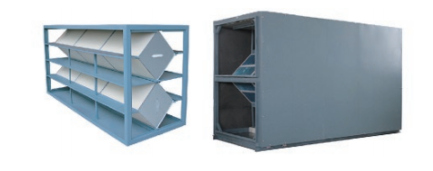

04 According to the needs of the field to increase the connection parts or chassis in order to directly with the duct or equipment docking, easy to use.
