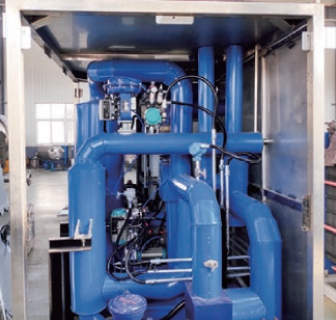

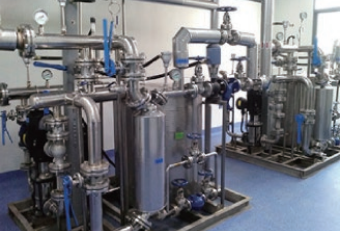

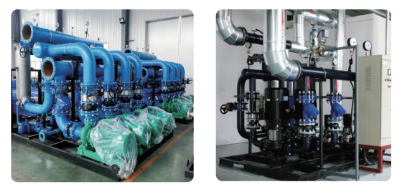

Heat Exchange Unit
High temperature & high pressure resistant
Fully welded plate heat exchangers adopt integrated welding without gaskets. They withstand high temperature and pressure with no frequent gasket replacement required.
Product Introduction
Field of application
1. Provide stable heat source for various heating conditions
2. Provide domestic hot water for public bathrooms, hotels, etc.
3. Provide constant temperature process hot water for the factory
4. The factory provides stable utilities, such as circulating heating system, circulating cooling system, etc.
Product Characteristics
1. Saving steam: the use of spiral wound tube heat exchanger, the average saving of steam more than 10%
2. Space saving: optimized layout, compact structure, can effectively save station space
3. Save manpower: high degree of automation, can be unattended automatic operation
4. Accurate temperature control: high-precision configuration can be provided according to requirements

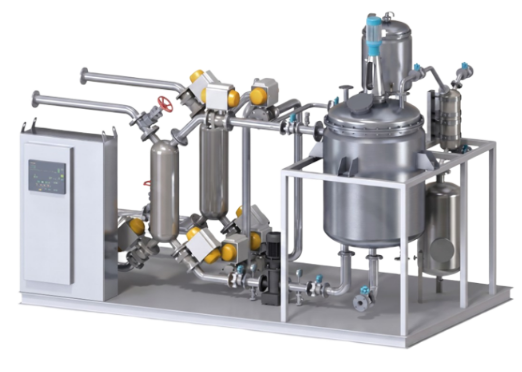

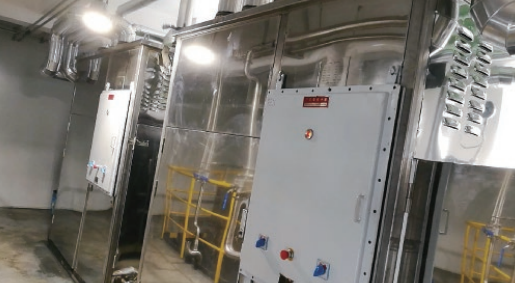

Precision Temperature Control Unit (TCU)
TCU is a precise temperature control module developed for pharmaceutical and fine chemical enterprises. It is composed of heat exchanger, circulating pump, regulating valve, temperature control system, channel and energy carrier to meet the requirements of precise temperature control and complex temperature change in chemical units such as synthesis, distillation, crystallization and drying. The TCU system consists of a heating module, a constant temperature module and a cooling block, and the combination is optimized according to the user's process needs. The device has data acquisition, status monitoring, real-time data processing, output control, historical data management, alarm monitoring, remote communication, rights management and other functions. The internal layout of the equipment is reasonable, the pipeline connection is short, the structure is compact, and the whole process is insulated. Compared with the traditional manual operation, it can improve the product quality, reaction yield, improve the crystal structure and reduce the human operation error. The equipment meets the requirements of FDA/GMP specifications, adapts to various production process switching, and helps enterprises develop to high-end products.
Silicon Carbide Heat Exchanger
Point of application
1. The synthesis reaction precise temperature control, heating, heat preservation, cooling
Dynamic temperature control at each stage
2. Accurate temperature control of distillation system
3. Drying system precise temperature control
4. Crystallization kettle precise temperature curve control
5. Temperature control of cryogenic system
6. Injection molding machine mold temperature control
7. Other processes that require precise temperature control and complex temperature changes
Equipment Features
1. The factory provides stable utilities, such as circulating heating system, circulating cooling system, etc.
2. Gradient control, you can set hundreds of processes
3. Stable production, set the process package after unlimited repeat
4. Single energy carrier to avoid process and equipment risks
5. Adopt PLC/DCS system, flexible configuration of hardware and industrial control configuration software
6. Multi-level user rights management, confidential process and convenient operation 7. Complete safe operation mechanism (logic interlock) 8. The system is deeply integrated and can connect with original modules such as stirring, feeding and dripping 9. The applicable temperature range is wide, ranging from -120°C to +300°C
10. Safe and convenient, can be installed on site or equipment area
11. Realize kettle internal control and jacket temperature control, and the two can be switched
