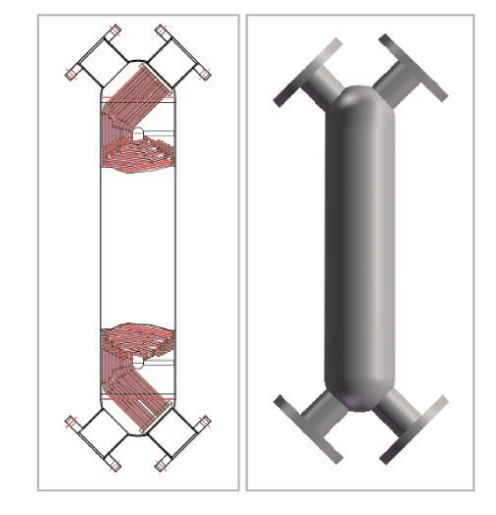

Spiral Wound Tube Heat Exchanger

Spiral Wound Tube Heat Exchanger

Heat transfer coefficient:the unique spiral winding tube bundle, optimize the flow state of the fluid on both sides, the heat exchange capacity per unit area is 3 to 5 times that of the traditional heat exchanger. Used as a heater can provide heat source utilization, used as a condenser can improve the material recovery rate, saving cold refrigerant costs.

Long service life: the elastic tube bundle in the heat exchanger can effectively absorb stress and vibration, prolong the service life of the heat exchanger, and the design life is up to 20 years.

Structure tendency: unique interface, no dead angle in heat exchanger, tube side and shell side can be fully emptied; The high-speed design of shell side can effectively reduce the probability of scale adhering to the surface of heat exchange tube, and the scaling tendency is low.

Space occupation: compact scaling, under the same working conditions, the volume is only about 1/5 of the traditional heat exchanger, saving space and reducing load.

Operating cost: steam heating conditions, saving more than 10% of steam. Condensation conditions, the recovery rate increased by 1 ~ 3%, the same refrigerant, the condensation temperature is lower; the same condensation temperature, reduce low-temperature condensation consumption, saving operation.

In order to meet the diversified needs of users for spiral wound tube heat exchangers, we have developed a series of heat exchangers that meet various processes.

Material more rich

Optional material: austenitic stainless steel 316L, duplex stainless steel 2205, 2507, pure titanium, zirconium, hastelloy, etc.
Heat exchange tube specifications diversification
Optional specifications: ø8, ø10, ø12, ø14, etc.
Precise custom tube spacing, layer spacing
According to the customer's process requirements, the winding tube heat exchanger of various intercircuit is accurately customized.

Products are complete

Can produce y-type spiral wound tube heat exchanger, type spiral wound tube heat exchanger, detachable spiral wound tube heat exchanger and customized large spiral wound tube heat exchanger.
The heat exchange area of a single heat exchanger is 0.1 ~ 1000m ².
